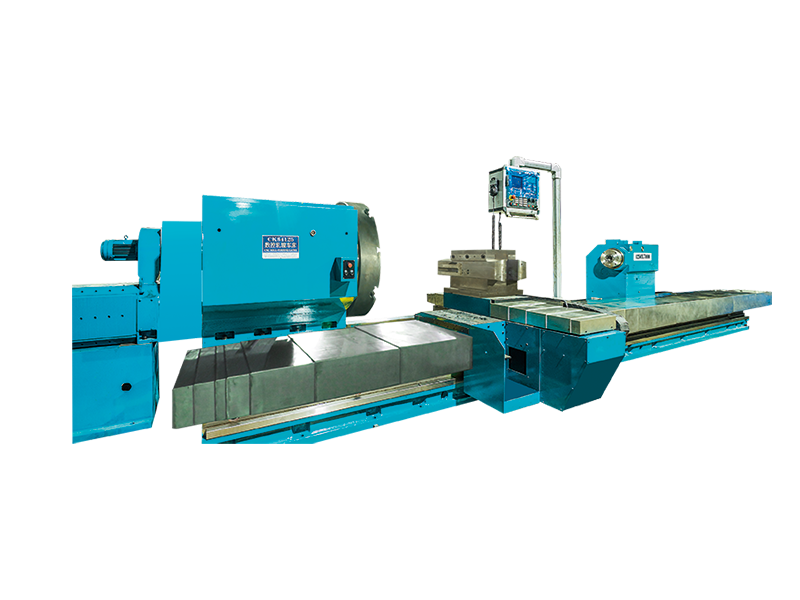

Home / Product / CNC Roller Lathe / CK84125 CNC Roll Turning Lathe
  • Parameter
  • Description
Main parameters Headstock Feed transmission Tailstock moving parameters Motor and other parameters
Max.Workpiece diameter Ø1250mm Main spindle rotation 3~200r/min Feed movement grade                   Stepless Tailstock sleeve of mobile content 250mm Variable frequency AC motor power 75/96KW
Max.Workpiece length 3000/5000/7000mm  Spindle speed grade Stepless  Longitudinal(Z axis)movement speed 1~4000mm/r Rapid speed of tailstock 2200mm/min Variable frequency AC motor for longitudinal feeding(Z axis)torque 1FK7
Max. load between center points 25000/32000Kg Spindle speed mode   Hydro-mechanical shift  Rapid  longitudinal  movement  speed 4000mm/min Tailstock moving mode            Motor drive Variable frequency AC motor for cross-feeding(Xaxis)torque 1FK7
Center height 750mm Work holding chuck diameter Ø1250mm Cross(X-axis)movement speed 1~2000mm/r The tailstock spindle taper hole size Ø106.375mm 1:4 The bed guideway form                    Stainless protective covers
Max.Cutting capacity                   80KN Size of spindle taper Ø139.719mm Rapid cross-movement speed 2000mm/min Tailstock sleeve diameter Ø320mm Overall size(L×W×H) 12160*2920*2250mm
Max. work holding chuck torque      50KN ·m Gross weight 45000kg
