Jiangsu Dingshun Heavy Duty Machine Tool Co., Ltd. (Nantong Baoshun Machinery Co., Ltd.) was established in 2002. It is an enterprise that has long been engaged in providing machine tool equipment for the metallurgical industry and steel enterprises. It has a deep foundation and rich experience in specialized machine tool equipment and is a supplier of solutions for steel enterprises. It is also a qualified supplier for the Shanghai 704 Research Institute of China Shipbuilding Industry Corporation, undertaking important scientific research projects such as torque sensors and other professional components. The company specializes in producing XK500 series CNC roll crescent groove processing machine tools, CK84 series CNC roll lathes, CA84 series digital display roll lathes, CNC roll ring lathes CK450, CXK9550 CNC turning and milling composite machine tools, CXK9580 patterned plate CNC turning and milling center, CNC diamond grinding wheel repair machine DK060, CNC vertical roll ring grinder MK630, CNC roll ring grinder MK001-5, CNC grinding machine ZKM150, ZWM150 precision universal grinding machine and other related supporting products.
The company has several large pieces of equipment provided by domestic and foreign brand enterprises, ensuring the quality of the produced machine tools and timely delivery. Over the years, with strong technical strength, mature products, and a comprehensive service system, our products have been sold to major steel companies across the country and foreign markets. Our customers have responded positively and we have obtained multiple national patents and independent intellectual property rights. Our company has now become a well-known brand enterprise in the domestic steel enterprise and metallurgical design institute roll processing machine tool industry.
The company will fully leverage its advantages, adhere to the purpose of "technological innovation, serving the market, treating people with integrity, and pursuing quality", and the corporate philosophy that products are the character. It will continuously innovate in technology, equipment, service, and management methods to continue developing more metallurgical industry products that meet future development needs and promote the development of China's steel industry. At the same time, we will also rely on our own technological and financial strength to actively engage in industry-university research cooperation with domestic and foreign peers, universities, research institutes, and other research projects.
Main parameters |

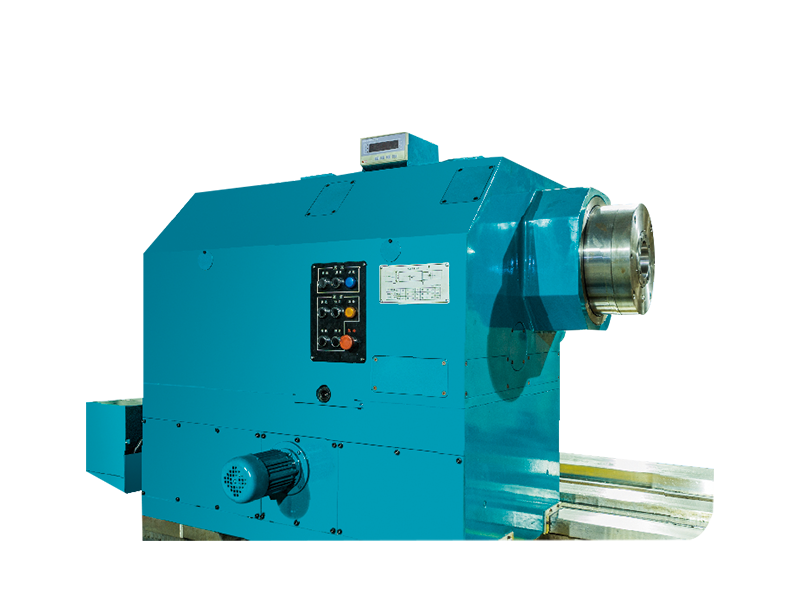

Headstock |
Feed transmission |
Tailstock moving parameters |
|||||
Max. Workpiece diameter |
Ø1000mm |
Main spindle rotation |
3~200r/min |
Feed movement grade |
Stepless |
Tailstock sleeve of mobile content |
250mm |
|
Max. Workpiece length |
3000/5000/7000mm |
Spindle speed grade |
Stepless |
Longitudinal(Z axis) movement speed |
1~4000 mm/r |
Rapid speed of tailstock |
2200 mm/min |
|
Center height |
650mm |
Spindle speed mode |
Hydraulic auto |
Rapid longitudinal movement speed |
4000 mm/min |
Tailstock moving mode |
Motor drive |
|
Max. load between center points |
25000Kg/32000Kg |
Work holding chuck diameter |
Ø1000mm |
Cross (X-axis) movement speed |
1~ 2000 mm/r |
The tailstock spindle taper hole size |
Ø106.375mm 1:4 |
|
Max. Cutting capacity |
80Kn |
Size of the spindle taper |
Ø139.719mm |
Rapid cross-movement speed |
2000 mm/min |
Tailstock sleeve diameter |
Ø320mm |
|
Max. work holding chuck torque |
50KN.m |
|
||||||
Motor and other parameters |
|
Variable frequency AC motor power |
75/98KW |
Variable frequency AC motor for longitudinal feeding (Z axis) torque |
1FK7 |
Variable frequency AC motor for cross-feeding (X-axis) torque |
1FK7 |
The bed guideway form |
Stainless protective covers |
Overall size (LX W X H) |
12160X2920X2250mm |
Gross weight |
40000kg |
