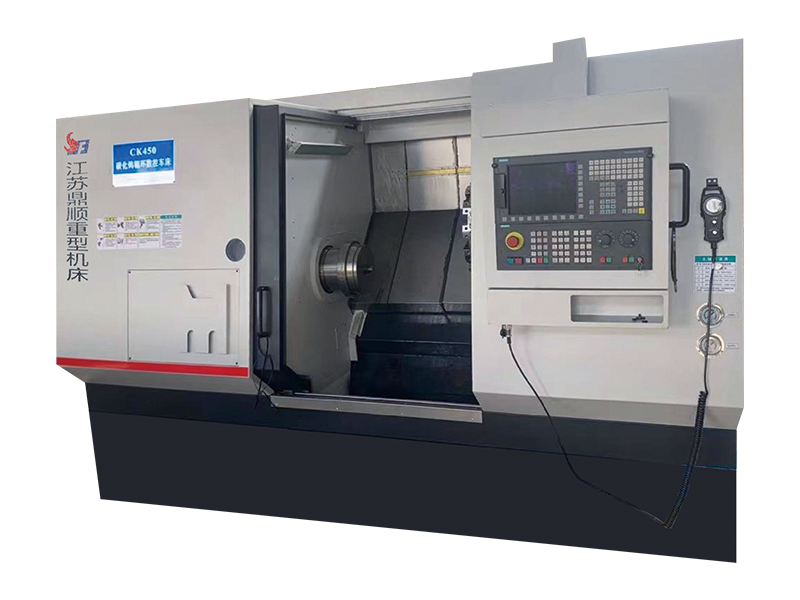

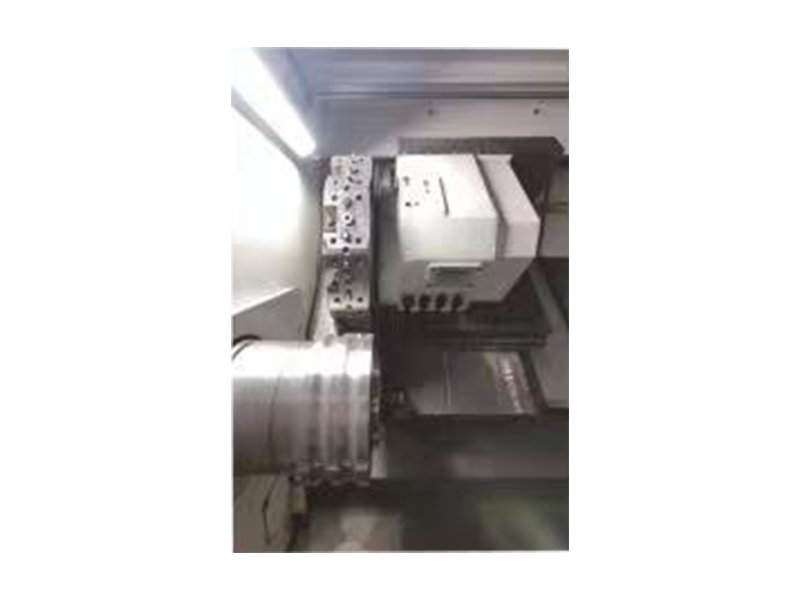

Home / Product / CNC Roller Ring Lathe / CK450 Shock-Absorbing CNC Roller Lathe
  • Parameter
  • Description

Name

Specifications and models

quantity

brand

control system

Siemens

1 set

Siemens

Servo motor

X direction: βis22/2000B

1 set

Z direction: βis22/2000

1 set

Main motor

Y160M-4

1 set

hyper sync

Spindle bearings

NN3024;234424;NN3021

1 piece each

NSK, FAG

Ball screw

X:Φ40×08:Z:φ50×10

1 set each

import

Screw bearing

BSH30×62, BSH40×90

1 group each

import

Knife holder

12 workstations

1 set

Taiwan Zhengtong

Chip conveyor

Chain plate type

1 set

Hangzhou Tongyi

Automatic lubrication device

YR-3-100 gear lubrication pump volumetric distributor

1 set

Ningbo Jiahong

Hydraulic unit

1 set

Domestic Mingyou

cooling water pump

750W;2m³/h

1 set

Jiangsu

warning light

YT703 DC24V yellow, red, and green three colors

1 set

Nantong Qifeng



Project

Unit

Specification

Main parameters of machine tools

Maximum workpiece rotation diameter on the bed

mm

650

Maximum workpiece rotation diameter on the saddle

mm

450

Maximum turning diameter

mm

500

Maximum stroke of skateboard (X)

mm

250

Maximum stroke of carriage (Z)

mm

500

Spindle

Spindle number one

IS0 A2-8

Spindle through hole diameter

mm

82

Spindle head taper hole



Metric 1:20(Φ90)

Speed ​​range

r/min

In-gear step-less frequency conversion speed regulation

Feed

X-direction rapid movement speed

m/min

12

Z-direction rapid movement speed

m/min

12

Accuracy

Positioning accuracy X/Z

mm

0.02/0.03

Repeat positioning accuracy X/Z

mm

0.008/0.01

Knife holder

Tool holder form

12-station horizontal tool holder

Knife size

External round knife

mm

25×25

Spindle box lubrication

Cycloidal lubrication pump

BB-B2.5

Lubrication pump power

W

120

Lubrication pump flow

L/min

3
