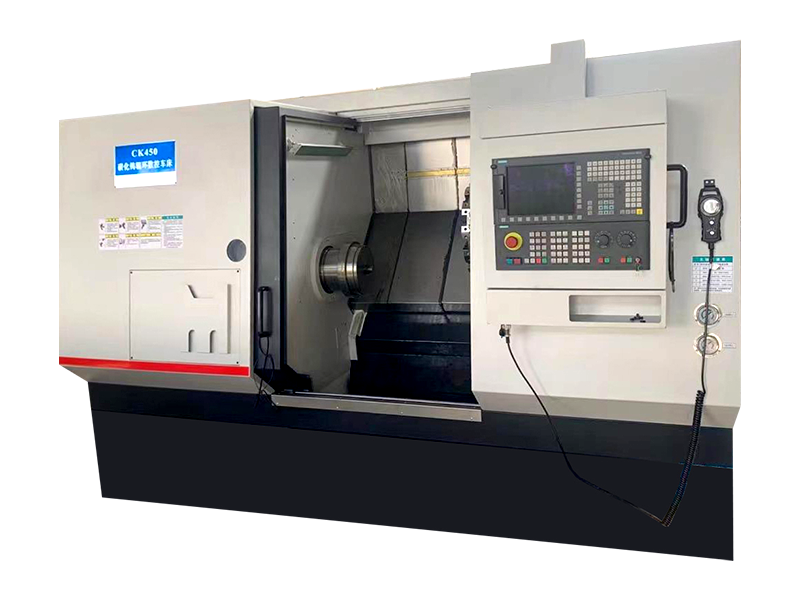

CK620 High Torque Precision Manufacturing Heavy Duty CNC Roll Ring Lathe

Contact Now Download
  • Parameter
  • Description

1.1 Main Specification Parameters

The swing diameter over the machine tool bed

mm

800

The swing diameter over the trailing plate

mm

620

Maximum Machining Length (Distance between Two Centers)

mm

1000

MaximumWeight of Workpiece

kg

3000

Machine Tool Bed Angle

Degree

45

1.2 Spindle and Drive

Spindle Bore

mm

120

Spindle Front Support Diameter

mm

180

Spindle Speed Series



Without Level

Spindle Speed Ranges

r/min

2-400

Main Motor Power (Continuous)

kW

22

Spindle Continuous Torque

Nm

2500

Spindle End Standard



A211

Automatic Hydraulic Tightening Sleeve



Roller Ring Matching

1.3 Feed Drive

Z-axis (Longitudinal) Trailing Plate Movement Distance

mm

1000

X-axis (horizontal) Trailing Plate Movement

mm

410

Fast Moving Speed Z/X

mm/min

8000

Feed Speed Range Z/X

mm/min

0.001-2000

Drive Motor Torque Z/X

Nm

27/27

Maximum Feed Force Z/X

N

20000

Minimum Setting Unit/Resolution

mm

0.001

1.4 Overall Dimensions and Weights of Machine Tools

Machine Tool Appearance Size (Length * Width * Height)

mm

4725×2175×2365

Weight

t

About 8T

2. Precision of Machine Tool

2.1 Working Accuracy (Standard Specimen)

Roundness of the Outer Circle of Finish Turning

mm

0.005

Surface Roughness of the Outer Circle of Finish Turning



Ra0.8

Cylindricity of the Outer Circle of Finish Turning

mm

0.02/300

Perpendicularity of the Outer Circle of the Finishing End

mm

0.01/100

2.2 The Main Geometric Accuracy of Machine Tools

Periodic Axial Movement of the Spindle

mm

0.005

Radial Runout of Bore-hole of Spindle

mm

Near End 0.015, Far End 0.020

Turret Repeated Positioning Accuracy

mm

0.005
