Home / Product / CNC Roller Lathe / CK8480 CNC Roll Lathe for fine turning of cast iron and steel parts
CNC Roller Lathe

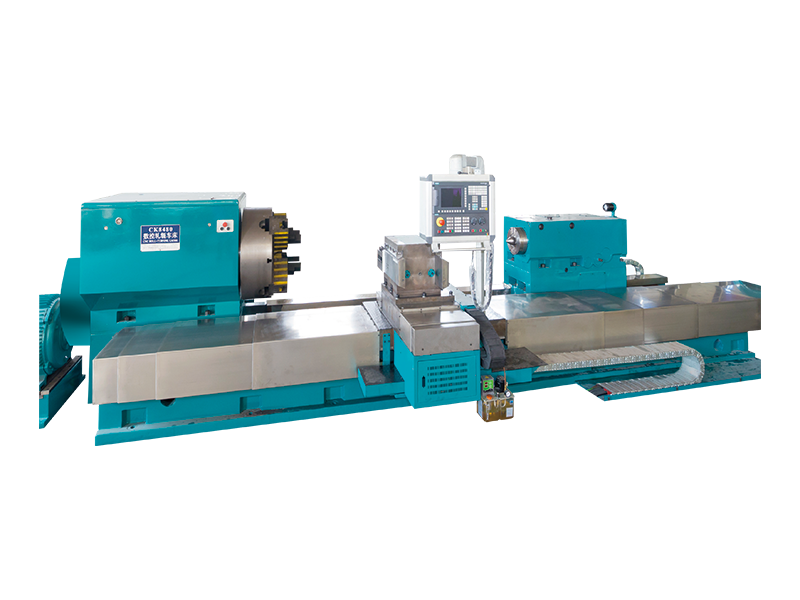

CK8480 CNC Roll Lathe for fine turning of cast iron and steel parts

Contact Now Download
  • Parameter
  • Description

Main parameters

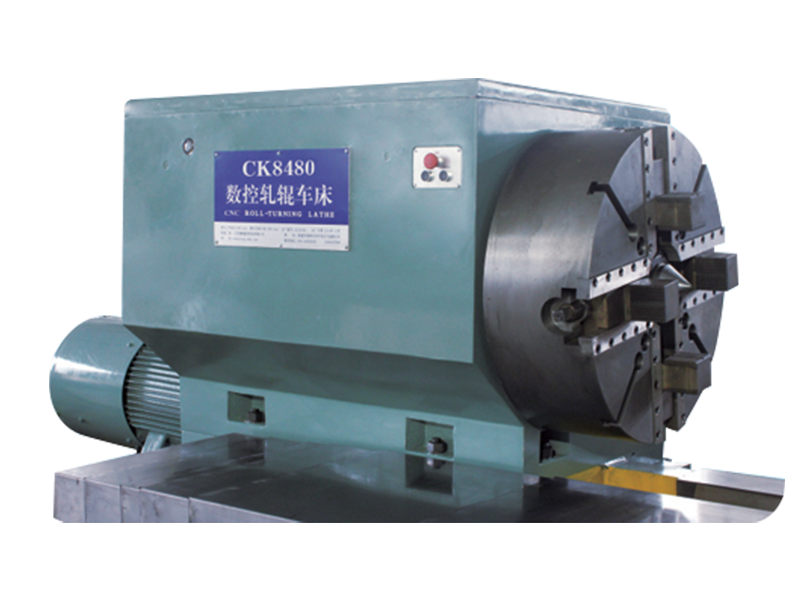

headstock

feed transmission

Tailstock moving parameters

Max. Workpiece diameter

Ø800mm

Main spindle rotation

1.25~250r/min

Feed movement grade

stepless

Tailstock sleeve of mobile content

250/300mm

Max. Workpiece length

3200/4000/5000mm

Spindle speed grade

stepless

Longitudinal(Z axis) movement speed

0.1~1000 mm/r

Rapid speed of tailstock

3000 mm/min

Center height

550mm

Spindle speed mode

hydraulic auto

Rapid longitudinal movement speed

4000 mm/min

Tailstock moving mode

motor drive

Max. load between center points

8T/12T/16T

work holding chuck diameter

Ø800mm

Cross (X-axis) movement speed

0.1~ 1000 mm/r

The tailstock spindle taper hole size

Ø80mm  1:7

Max. Cutting capacity

45Kn/50KN

size of the spindle taper

Ø100mm 1:7

Rapid cross-movement speed

2000 mm/min

Tailstock sleeve diameter

Ø220/Ø280mm

Max. work holding chuck torque

16000N.m

Rail width 1040/1250mm
