Diamond Wheel Dressing Machine

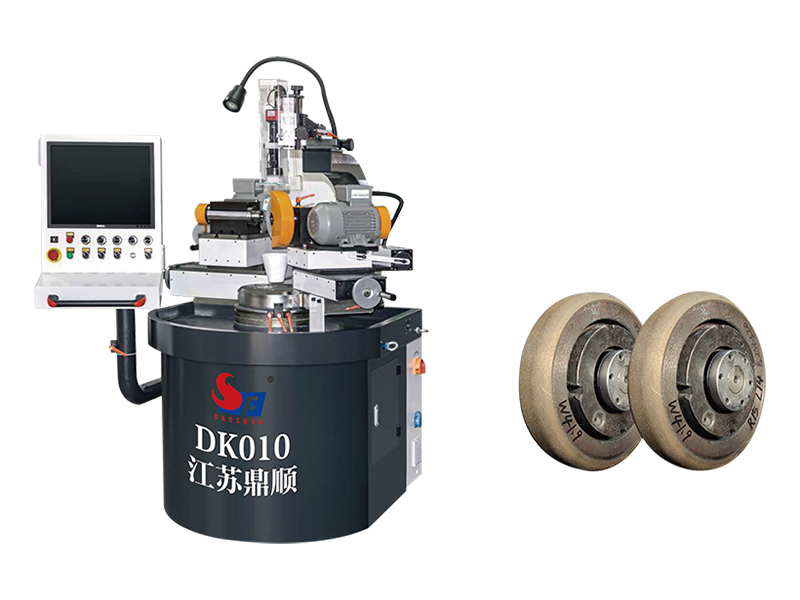

DK010 Digital Diamond Wheel Dressing Machine

Contact Now Download
  • Parameter
  • Description
Item Content/Specifications
Grinding wheel spindle to be trimmed 1:6 cone or customized according to customer requirements
Diamond wheel diameter Φ50~Φ300mm
Maximum width of diamond grinding wheel 65mm
Diamond wheel speed 0~750rpm/min
Diamond wheel motor 0.75Kw
Diamond wheel
Moving stroke
X-Axis
Z-Axis
135mm
135mm
Maximum arc radius of diamond grinding wheel R60mm
Dressing wheel (silicon carbide) specifications Φ250×Φ51×16mm
Dressing wheel speed 0~2800rpm/min
Dressing wheel motor 0.75Kw
Trim wheel swing speed 0~50rpm/min(Stepless speed change)
Trim wheel swing length 0~30mm(Tunable)
Trim wheel swing motor 0.09Kw
U-axis travel 80mm
X, Y, Z grating ruler device 0.001mm
CCD optical system (including software) 1 set
Data acquisition card 1 set
15-inch industrial computer 1 set
Supply voltage 380V,50HZ
Gross power 1.5Kw
Machine size(L×W×H) 1600mm×1200mm×1800mm
Gross machine weight Approx. 1500KG
