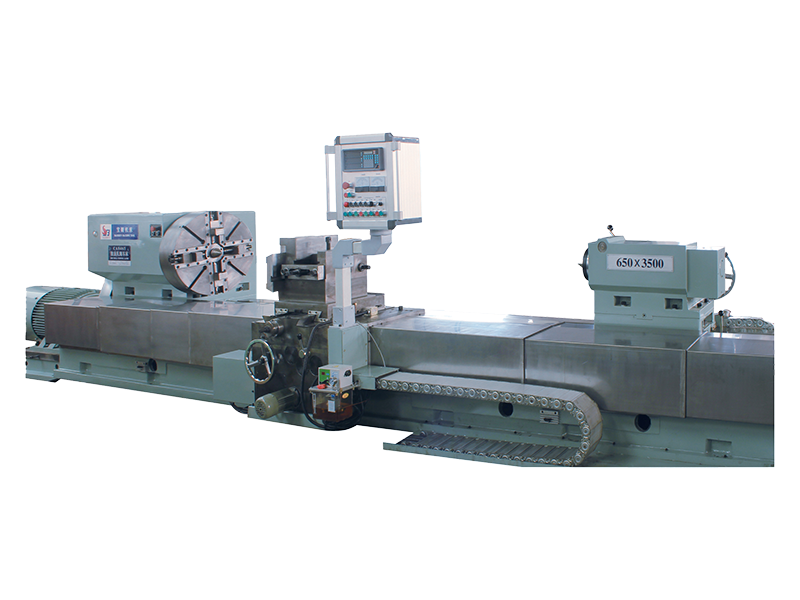

Home / Product / Digital Display Roll Lathe / CA8465 High-Precision and High-Stability Digital Display Roll Lathe
  • Parameter
  • Description

Main parameter

Maximum workpiece diameter

650mm

Center height

400mm

Maximum workpiece length

3500mm

Maximum workpiece weight

8T

Disc torque

22000N·m

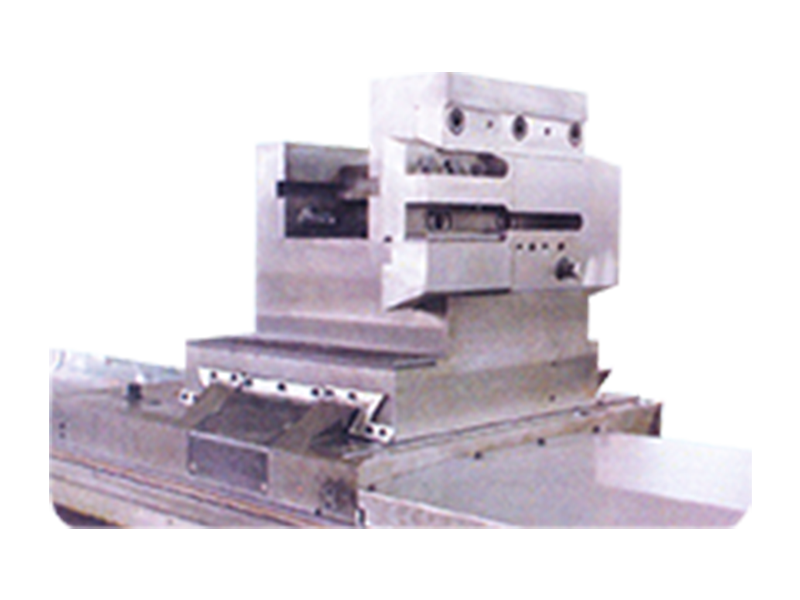

Maximum cutting force of tool holder

50KN

Main drive parameter

Spindle speed series

Stepless

Spindle transmission mode

Hydraulic automatic

Disk diameter

650mm

Spindle taper hole size

No.120

Feed transmission parameters

Feed AC servo motor

17.3N·m

Feed level

Stepless

Feed range Vertical

0.1 ~ 4000mm/min

Horizontal

0.1 ~ 2000mm/min

Spindle speed

1~75r/min

Fast-moving speed of tool head

4000mm/min

Transverse fast-moving speed of the tool holder

2000mm/min

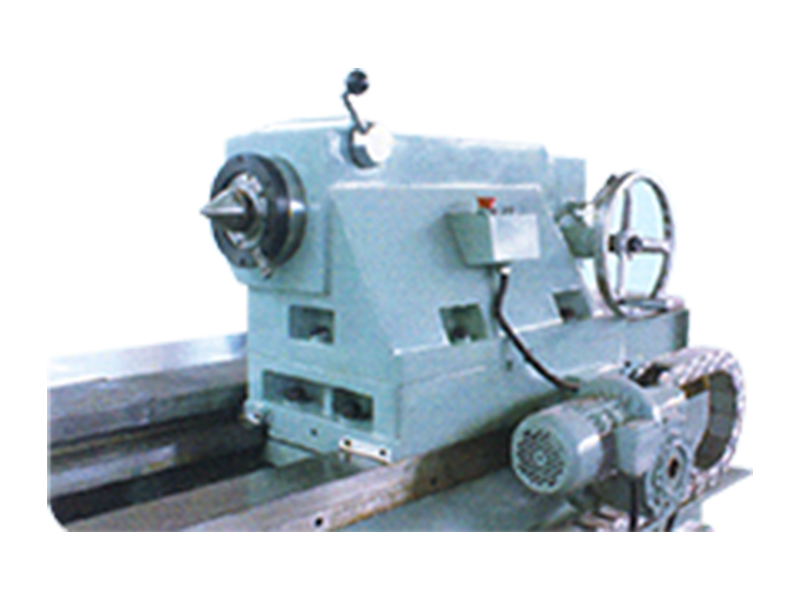

Tailstock parameter



Tail seat sleeve movement

150mm

Tailstock sleeve diameter

200mm

Tail seat spindle cone hole size

60mm 1:7

Tail seat movement mode

Maneuvering

Motor parameter



Main motor power

 30KW
